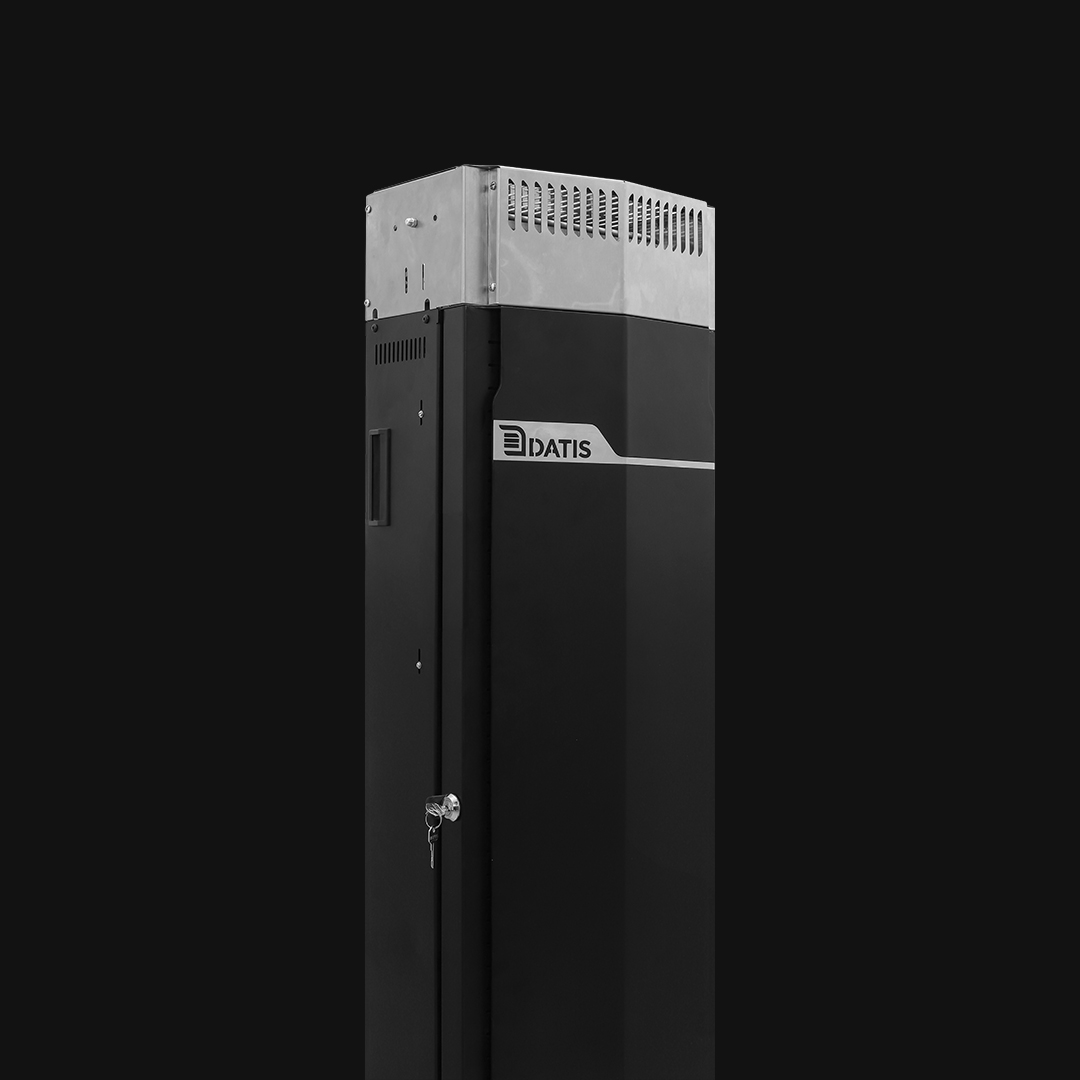

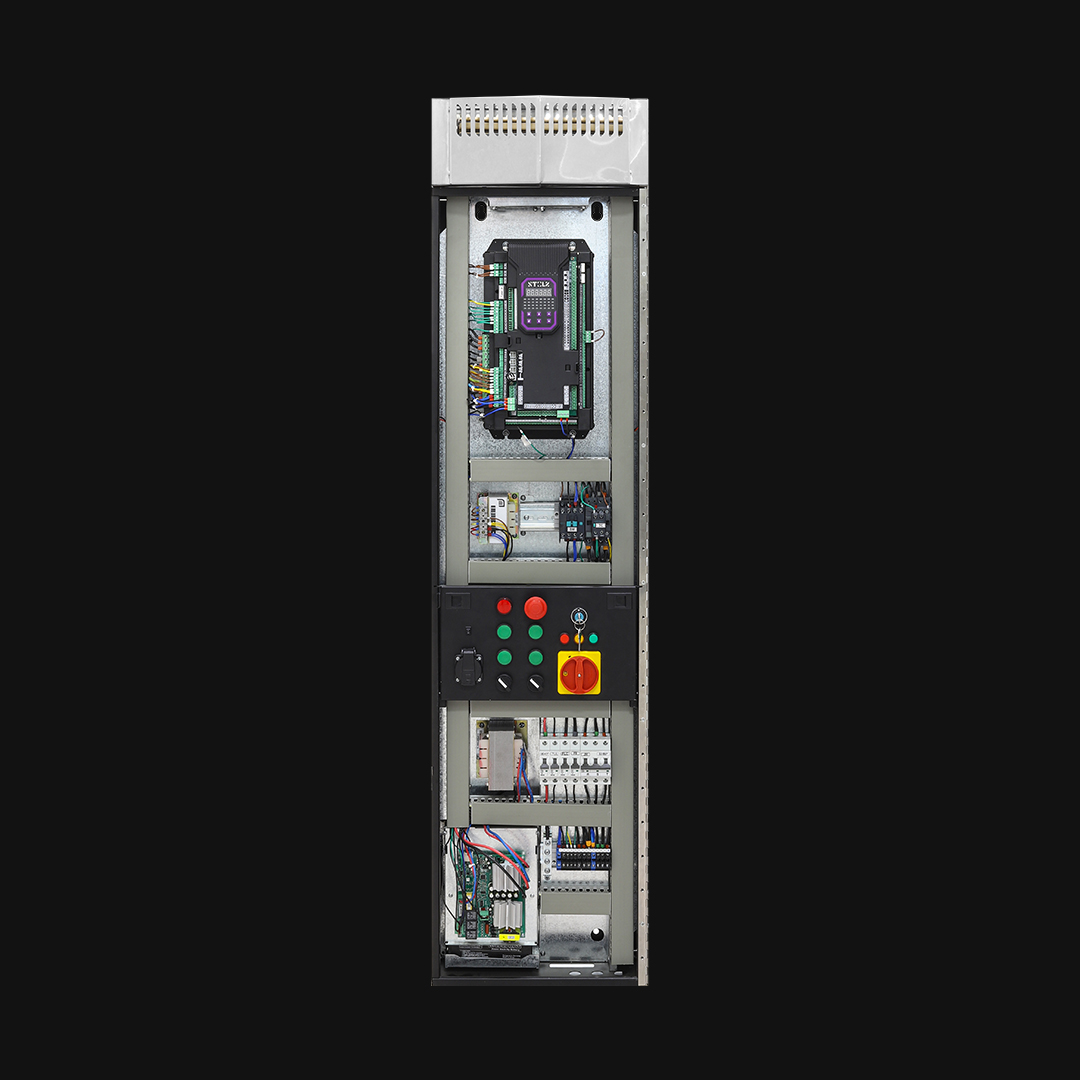

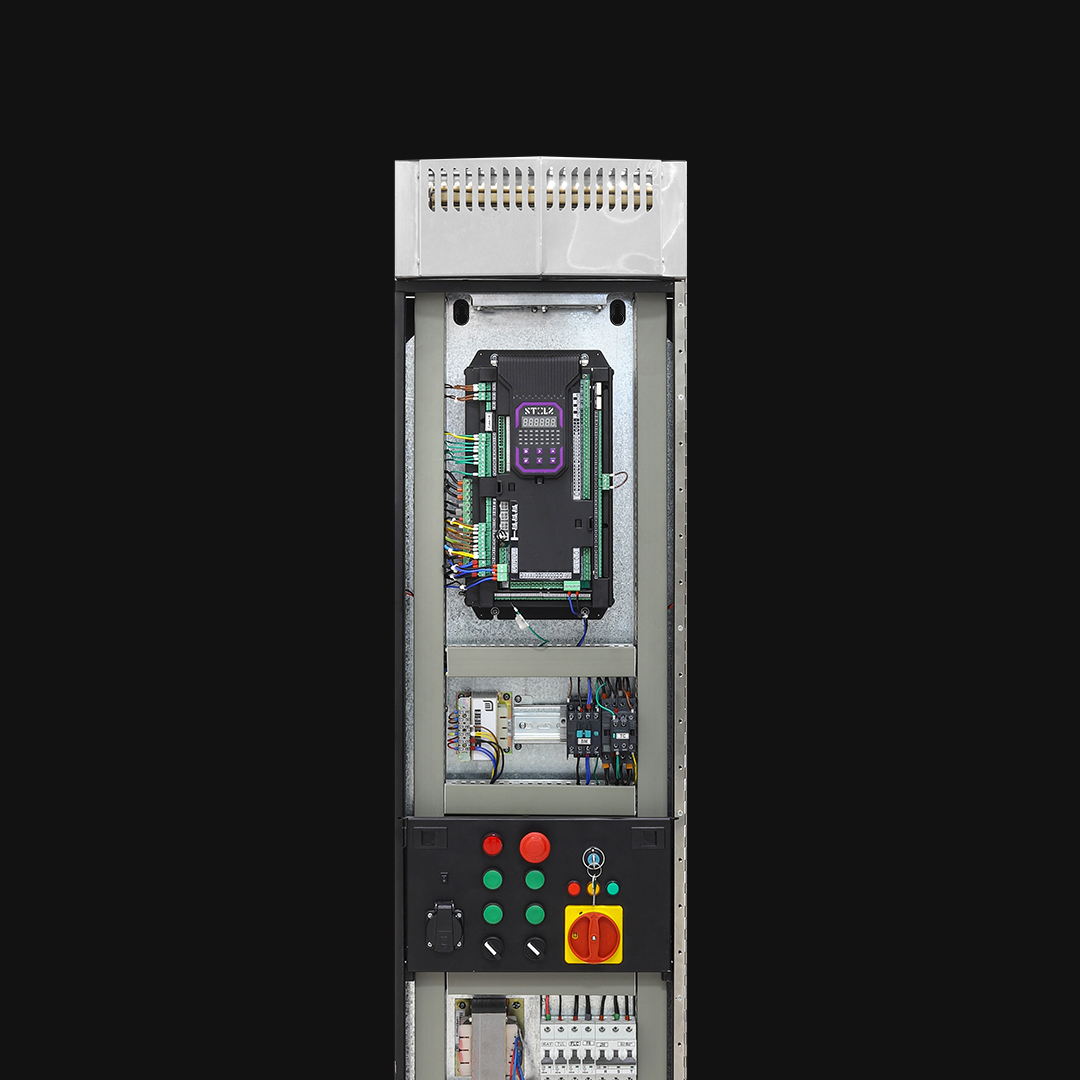

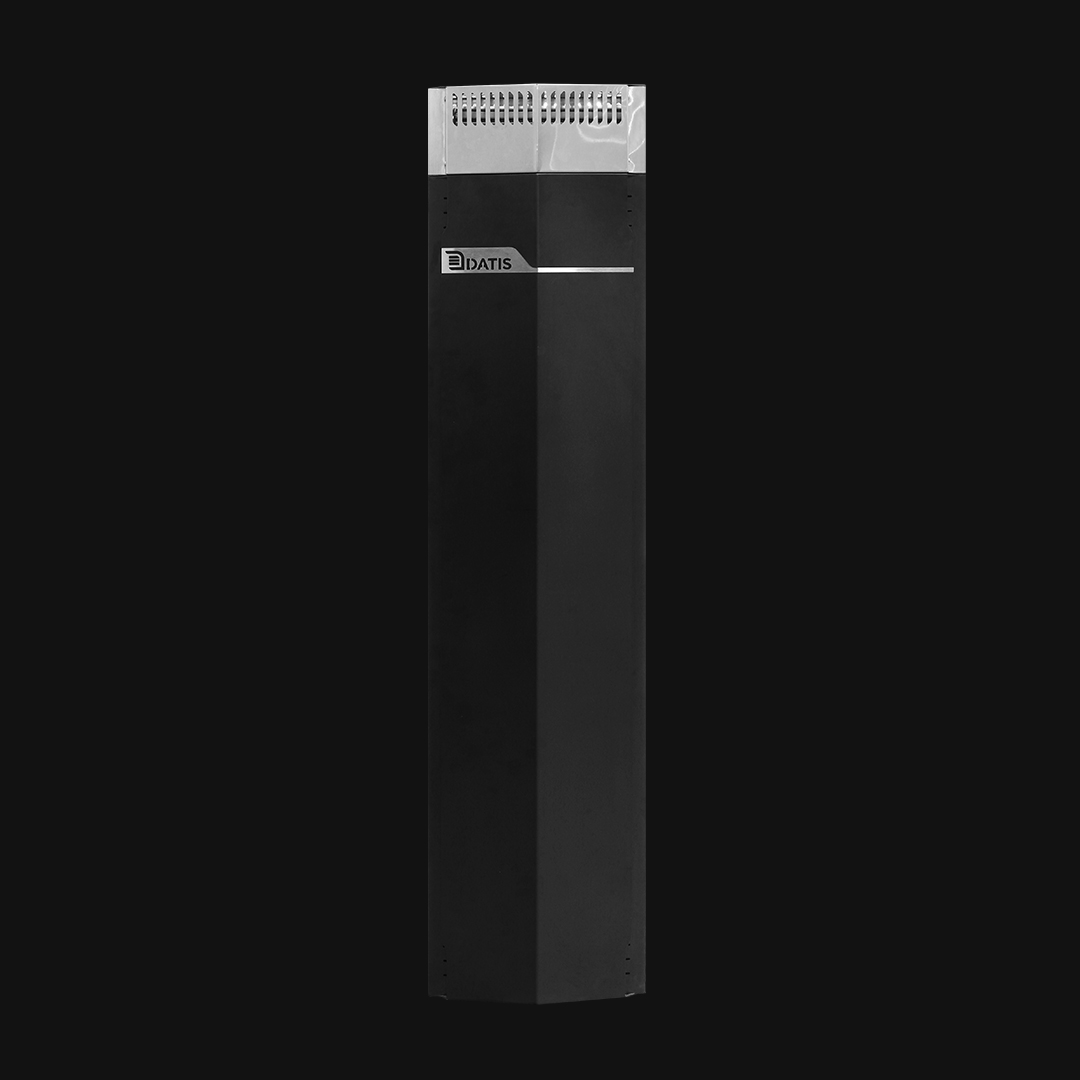

Datis Control Panel Equipped with Shtolz Unified Control System

Suitable for gearless and gearbox systems – compatible with power ratings from 7.5kW to 15kW – diving movement and ideal stopping – ability to tune gearless systems under both load and no-load conditions

Datis Control Panel Equipped with Shtolz Unified Control System

Suitable for gearless and gearbox systems – compatible with power ratings from 7.5kW to 15kW – diving movement and ideal stopping – ability to tune gearless systems under both load and no-load conditions

Standard

EN81-20

Motor type

Gearbox motor (closed-loop) / Gearless

Drive power

4kW (Nominal current 10 amps) - 5.5kW (Nominal current 14 amps) - 7.5kW (Nominal current 17 amps)

Ava system

Integrated with the revision board, music and floor announcement, selectable language and music options (custom music upload available via the Shtolz software).

Group control

Up to 8 elevators

Remote access

Via Bluetooth, using the Shtolz mobile app with capabilities for parameter adjustment, system monitoring, updates, saving, and restoring settings

Elevator speed

Up to a maximum of 2.5 meters per second.

Maximum cabin speed

2.5 meters per second

Number of stops

Parallel: 16 Serial: 32

Emergency rescue system (UPS)

Equipped with an intelligent built-in emergency rescue system with serial communication (operates with 2 batteries) and the ability to display the motor movement status during rescue operations on the control panel display.

Ability to perform dynamic tests

Equipped with two push buttons for engaging the governor to test the parachute and activate the governor microswitch.

Product features

1

Intelligent and user-friendly

Easy installation thanks to optimized terminal layout
Reserved and programmable terminals
Simple and smart tuning process with the HPC control algorithm
Ideal and rollback-free control at the start and end of movement
Startup, system monitoring, troubleshooting, and updating via mobile phone
Diving movement and ideal stopping with Direct Approach capability
Ideal ride quality through precise estimation of the system’s mechanical inertia

2

Compatible and flexible

Customizable thanks to modular design
Group control for up to eight elevators with an intelligent algorithm

3

Safe and reliable

Designed and manufactured according to EN81-20 standard
Can operate without an STO contactor

Datis Control Panel Equipped with Shtolz Unified Control System

To download the product catalog, click the button below.
