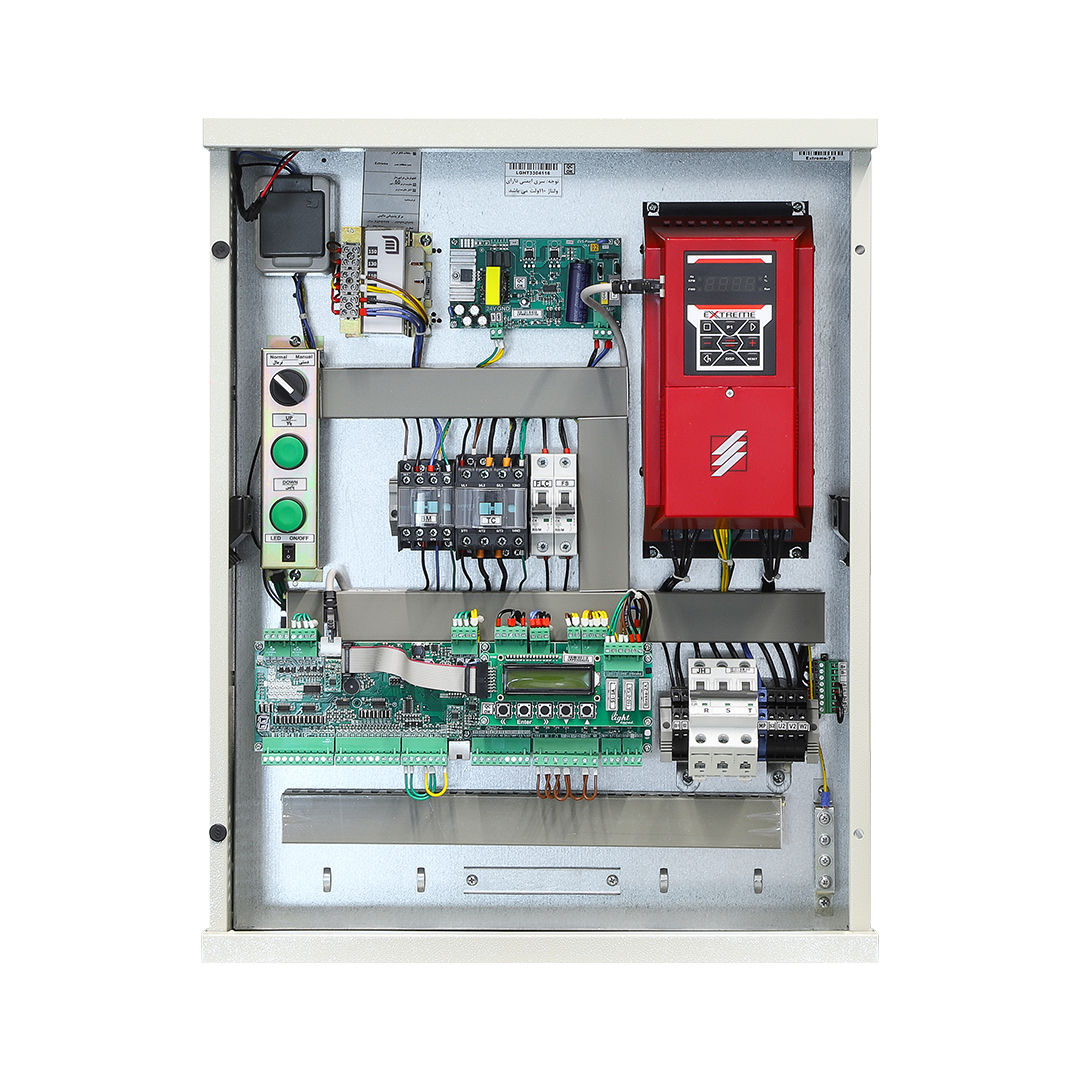

Datis Control Panel with Light Controller Equipped with Xtreme Drive

Suitable for gearless and geared systems – Usable with power ratings from 7.5kW to 15kW – Smooth dive movement and ideal stopping – Capability to tune gearless systems under load and no load conditions

Datis Control Panel with Light Controller Equipped with Xtreme Drive

Suitable for gearless and geared systems – Usable with power ratings from 7.5kW to 15kW – Smooth dive movement and ideal stopping – Capability to tune gearless systems under load and no load conditions

Standard

EN81-1

Elevator speed

Up to a maximum of 2.5 meters per second.

Motor type

Gearbox motor (induction) / Gearless (synchronous, permanent magnet PM)

Control method

Open-Loop (V/F, Sensorless Vector) - Close-Loop (Vector Control)

Drive power

7.5kW (Nominal current 18 amps) - 11kW (Nominal current 24 amps) - 15kW (Nominal current 32 amps)

Number of stops

10 stops (expandable up to 26 stops by adding an expansion board)

Communication between the board and the drive

Integrated technology

Types of call buttons

Full Collective ،Down Collective ،Selective Collective

Door control

Two separate doors (without additional sensors)

Cancelling system

Cancel cabin button command with double-click.

Ability to add UPS

Available (via serial communication).

Product features

1

Intelligence

Extremely smooth and optimized movement using HPC technology
Diving leveling with complete drive position information solely from the encoder, without the need for magnetic sensors
Precise cabin position maintenance even during power outages while in motion
Smart Auto Tune with step-by-step adjustment

2

Short Floor

The ability to define a half-floor for levels with short distances

3

Protection

Elevator operation in case of phase shift
Digital phase control system resistant to sudden voltage fluctuations
Ability to record and display the last 16 errors

4

Software features

The ability to block any of the call buttons

The ability to define a parking floor and operate in firefighting mode

The ability to define terminals for buttons and indicators on reserved terminals

5

Revision box

The ability to operate with a 12-wire travel cable

Equipped with a socket cable for the cabin button with color-coded wires for easy installation

All wiring has been completed towards the revision box
