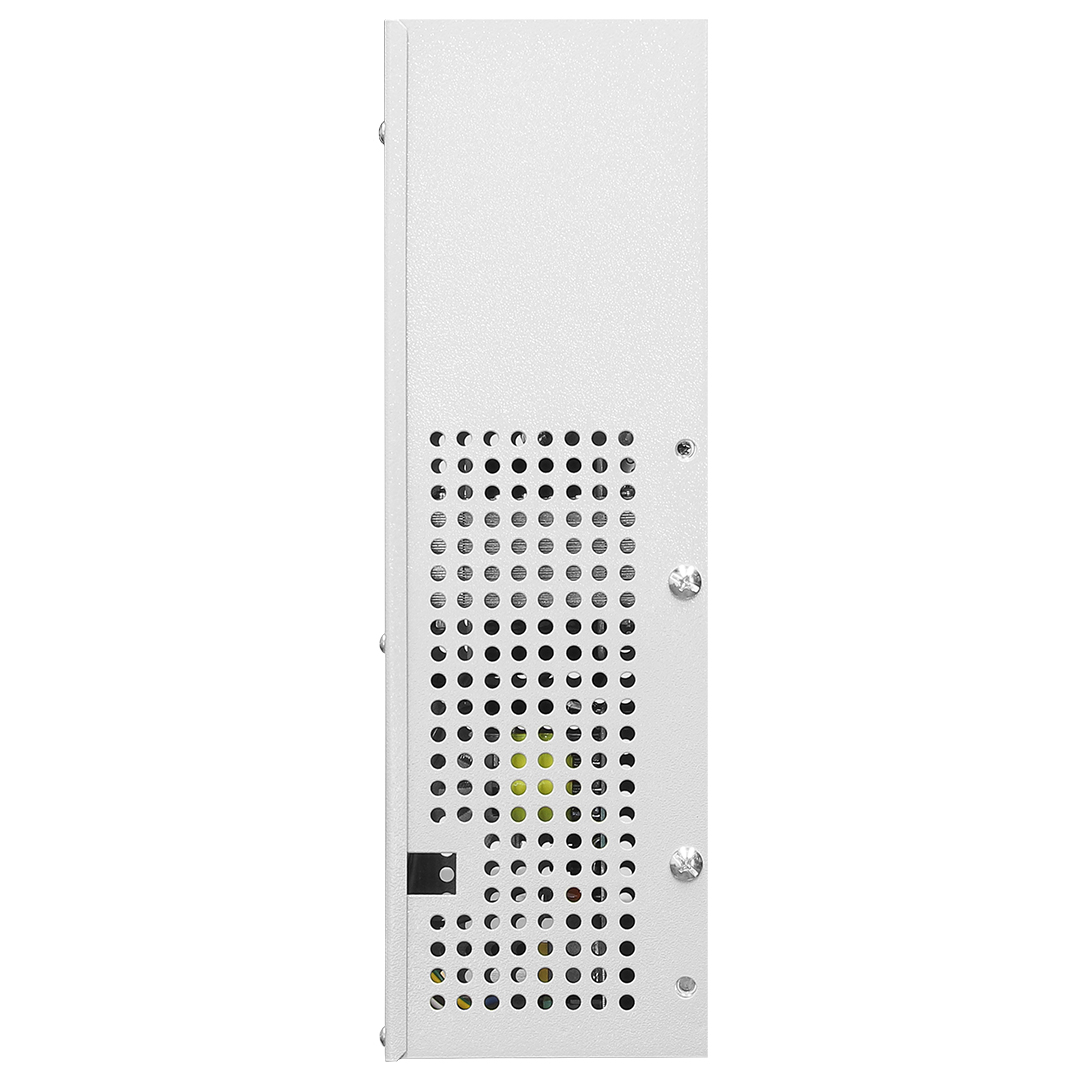

Datis Emergency Rescue System (UPS)

Extremely fast operation during power outages (less than 0.1 second delay) – increased battery life due to the use of floating charge technology – maximum safety during rescue operations by bringing the cabin to the floor level and opening the door

Datis Emergency Rescue System (UPS)

Extremely fast operation during power outages (less than 0.1 second delay) – increased battery life due to the use of floating charge technology – maximum safety during rescue operations by bringing the cabin to the floor level and opening the door

Compatibility with UPS 1.2 kVA

Datis control panels (gearbox and gearless) up to 15kW power

Compatibility with UPS 1.8 kVA

Datis control panels (gearbox and gearless) up to 15kW power rating

UPS 1.2 kVA battery specifications

2 batteries, 7.2A, 12V

UPS 1.8 kVA battery specifications

3 batteries, 7.2A, 12V

Input voltage of UPS 1.2 kVA

Single-phase, 220VAC

Input voltage of UPS 1.8 kVA

Three-phase, 380VAC

Output voltage of UPS 1.2 kVA

220VAC and 560VDC

Output voltage of UPS 1.8 kVA

220VAC

Product features

1

Cabin emergency message

4 languages (Persian, English, Turkish, and Arabic)

2

Communication

Serial communication with the control panel via LAN network cable

3

Charging method

Floating charge technology to extend battery life

4

Direction detection

Automatic detection of the optimal direction based on cabin weight

5

Application software

Retaining the floor counter after rescue operation

Battery status monitoring system

Viewing messages and errors on the controller LCD

Datis Emergency Rescue System (UPS)

To download the product catalog, click the button below
